bird-out
®
Steelinox® / inoxRef : BDO101
Description : Bird-out® Steelinox®
Packaging : 20 M kit
Ref : BDO107
Description : Bird-out® Inox
Packaging : 20 M kit
Ref : BDO108
Description : Bird-out® Evolution
Packaging : 20 M kit
Ref : BDO116
Description : Bird-out® Evolution Inox
Packaging : 20 M kit

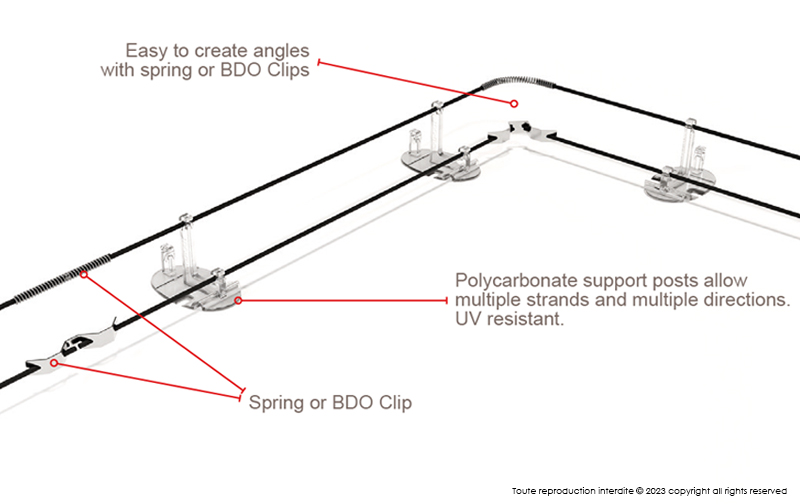

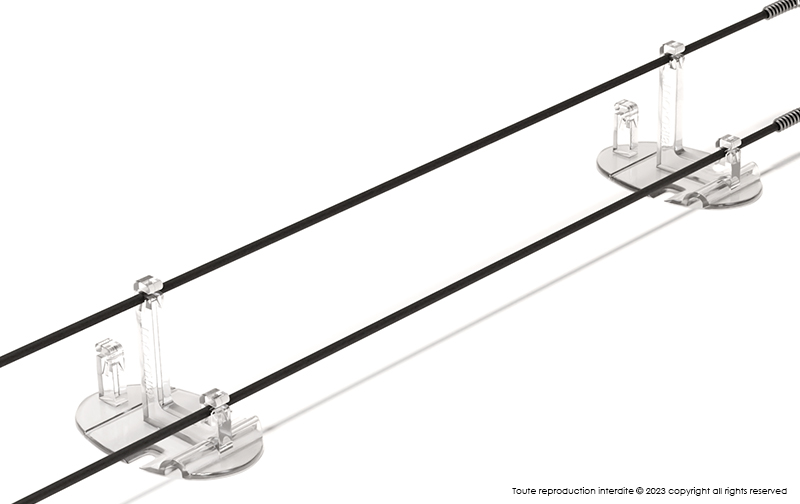

One kit includes :
• 40 bars (Ø 2mm – length of 1m).
• 40 UV-stabilised polycarbonate mounts.
• 2 0,50m coils of springs or BDO Clip (getting 40 connections of 2,5 cm).
• 2 connections.
• Packaging dimensions : 10 x10 x 100 cm.
• Packaging weight : 1,4 kg.
• Widths protected : see technical specifications available on request.
• Technical sheet for fitting supplied in each pack.

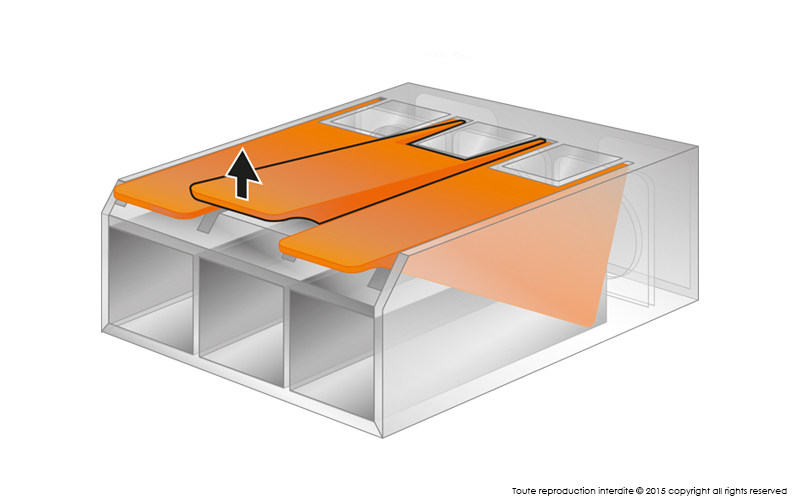

Triple connexion
Ref : BDO018
Description : Triple connexion
Packaging : Unit
Ref : EVO047
Description : White heat shrink tubing
Packaging : Unit
• To connect the Bird-out® double cable or the 5000 volts cable to the bars
• Standard IEC 60228, CEI 20-22 II (Bird-out® double cable) & EN50143 (5000 volts cable).
• Heat shrink tubing (black or white).

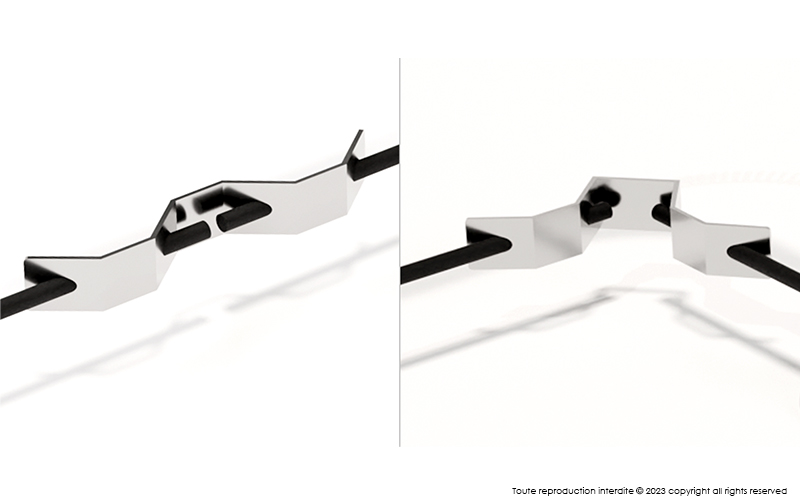

BDO Clip
Ref : BDO009
Description : BDO Clip
Packaging : Unit
• Length : 40 mm.
• Width : 6 mm.
• The clip ensures perfect fixing of the rods akin to a « welding process », while still facilitating directional changes without strain or pressure.

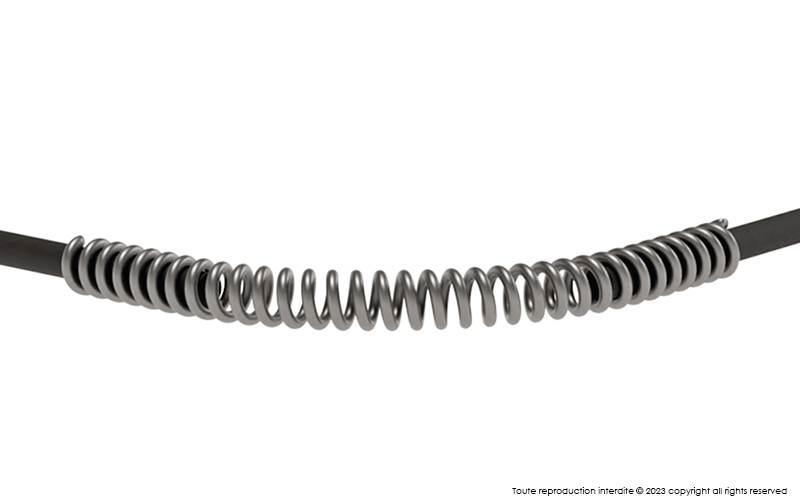

Spring
Ref : BDO017
Description : Bird-Out® Spring
Packaging : Unit
• Lenght : 0,50 ml.

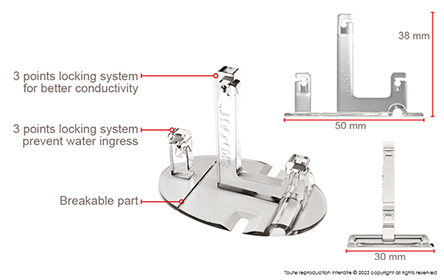

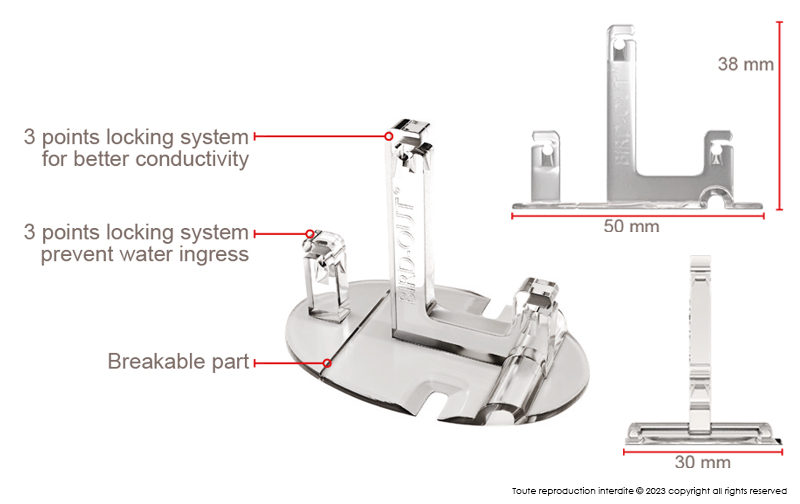

Mount
Ref : BDO012
Description : Mount
Packaging : Unit
• Multi-surface mounting and multi-directional positioning, manufactured in UV-stabilised polycarbonate.

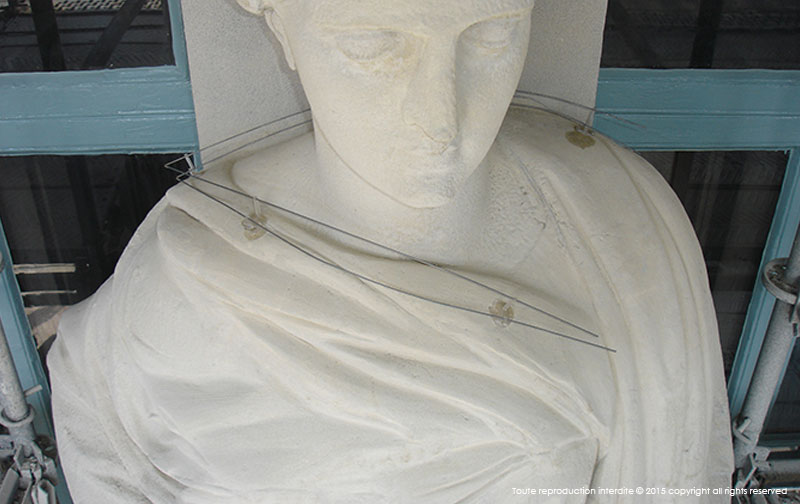

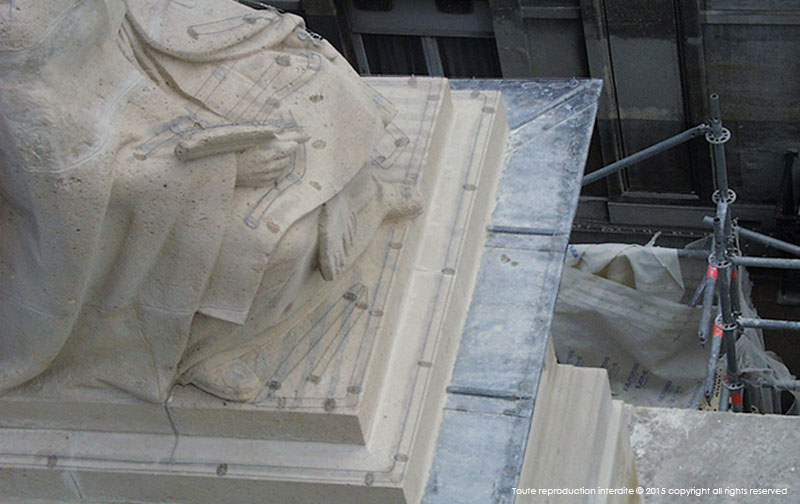

• Anti-arcing safety system. Water repellent system. Historical monuments require 3 mounts per meter.
Bar
Ref : BDO011
Description : Steelinox® bar
Packaging : Unit
Ref : BDO014
Description : Stainless-Steel bar
Packaging : Unit
• Bar made of Steelinox® or stainless-steel Ø 2 mm
• length 1 m.
• Can easily be cut to the required length or bent to follow the profile of the architecture.
Selcleaning®
Ref : SEL003
Description : Selcleaning
®
Packaging : 1 litre can
Currently not available !
Directions for use :
Dilute 1 litre of professional cleaner into 4 litres of water.
Selfixing®
Ref : SIL001
Description : Silicone Selfixing
®
Packaging : 280 ML cartridge
Currently not available !
• Application : 13 to 16 linear meter / hour.
• 1 cartouche ± 200 supports Bird-Out®.
Apply to the clean and dry supports when temperatures are between +5°C to +40°C
Central generator
Ref : EVO050
Description : Central generator 02
Packaging : Unit
• 220 volts generator.
• Technical specifications on request.
Bird-Out® double cable
Ref : EVO100
Description : Bird-Out® double cable reel
Packaging : Spool of 50 M
• To safely connect two spaced locations of the BIRD-OUT® circuit.
• Double cable with RZ flame retardant PVC sheath and multi-wire copper conductive material.
• light gray color, it has a black sheath and another red to locate the side ㊉, ideal when going through a chute.
• Standard IEC 60228 and IEC 20-22 II
5000 V Cable
Ref : EVO155
Description : 5000 V Cable
Packaging : Spool of 100 M
• To connect two remote points of BIRD-OUT®.
• Covered with a reinforced electrical insulation (5000 V) and designed for high-tension current.
Conducts the highest levels of power with no loss.
• Common EN 50143
• Color: grey.
Joulimeter
Ref : EVO020
Description : Joulimeter
Packaging. : Unit
• Digital multimeter and a detector losses
• Download data sheet below
